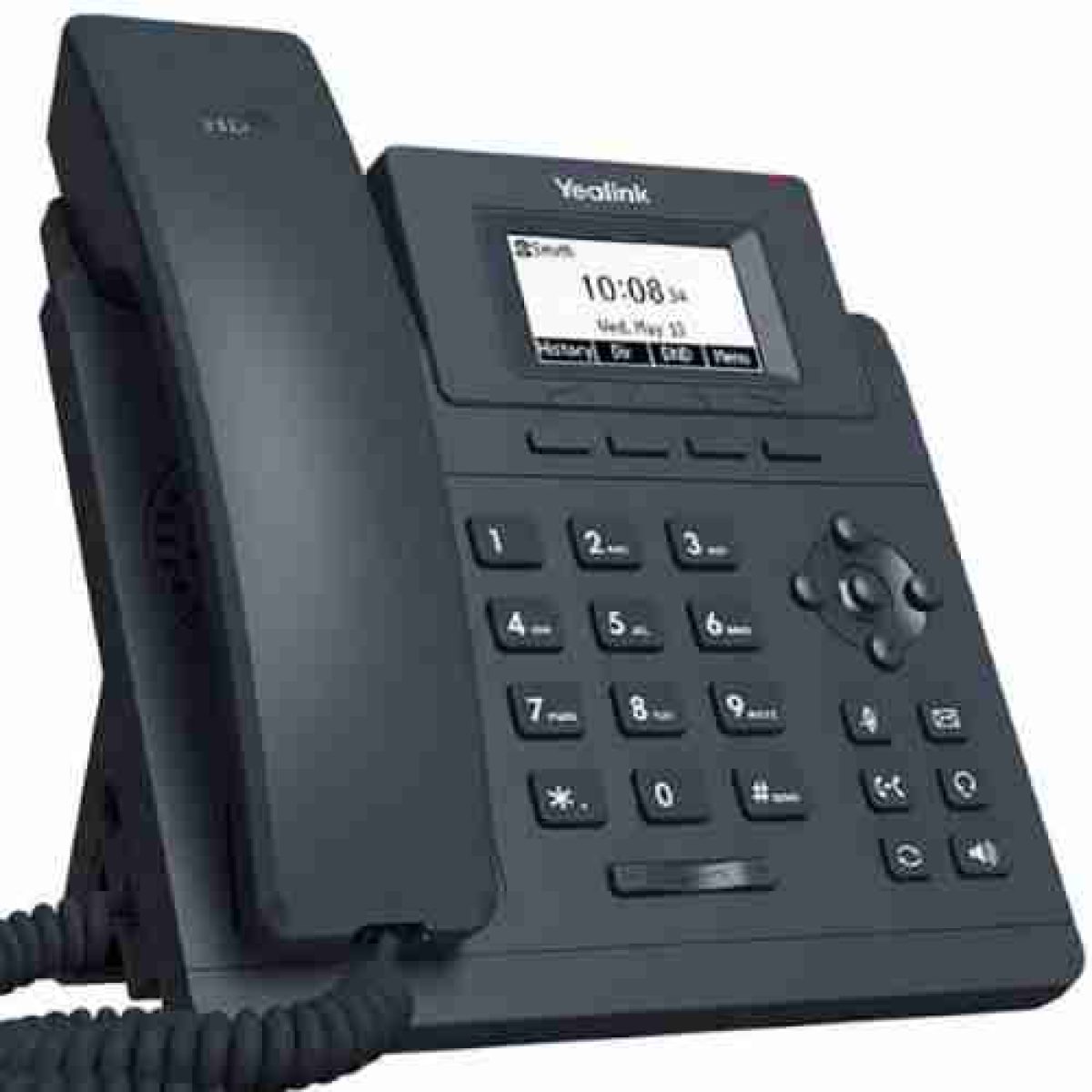

Yealink SIP-T31P - Classic Business IP Phone-T31P
Yealink SIP-T31P - Classic Business IP Phone-T31P Original price was: KSh 8,000.00.Current price is: KSh 6,000.00.
-4%
Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna
Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna
Click to enlarge
Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna
Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna

Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna

Key Features:

  • 4×4 MU-MIMO Technology:
    • The antenna is designed to support 4×4 Multi-User MIMO (MU-MIMO), allowing simultaneous communication with multiple devices, which boosts capacity and overall network performance, especially in dense environments.
  • Wide Frequency Range:
    • It operates across the 5 GHz spectrum (4.9 GHz to 5.9 GHz), supporting various unlicensed 5 GHz bands, which is ideal for outdoor wireless broadband deployments.
  • High Gain:
    • The antenna offers 16 dBi peak gain, ensuring greater coverage and signal strength, even in areas with high interference or distant clients.
  • Efficient Beamforming:
    • Designed with high-efficiency beamforming to focus the signal in specific directions, improving both coverage and signal integrity.
  • Dual Polarization:
    • The antenna is dual-polarized (horizontal and vertical), allowing for better spatial diversity and increased system throughput by minimizing interference and maximizing signal clarity.
  • Optimized for Cambium ePMP 3000:
    • Specifically designed to work with the Cambium ePMP 3000 Access Point, the antenna maximizes the potential of the access point’s 4×4 MU-MIMO capabilities, providing superior network performance.

Original price was: KSh 57,000.00.Current price is: KSh 55,000.00.

Compare
Add to wishlist
14 People watching this product now!

Payment Methods:

Description

Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna

Electrical Specifications:

  • Frequency Range: 4.9 GHz to 5.9 GHz
  • Gain: 16 dBi
  • Beamwidth:
    • Horizontal Beamwidth: 90°
    • Vertical Beamwidth: 10°
  • Polarization:
    • Dual-polarized (horizontal and vertical)
  • VSWR (Voltage Standing Wave Ratio): ≤ 1.8:1 (across the operating frequency range)
  • Impedance: 50 ohms
  • Max Input Power: 50W
  • Axial Ratio: ≤ 2 dB (indicating minimal polarization distortion)

Connectors:

  • 4 x 50 ohm N-type Female connectors (one for each MIMO port)

Environmental Specifications:

  • Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)
  • Operating Humidity: 5% to 100% (non-condensing)
  • Wind Load: 160 km/h (100 mph)

Mechanical Specifications:

  • Dimensions:
    • 28.3 cm (W) x 29.7 cm (H) x 7.6 cm (D) (11.14 in x 11.69 in x 3 in)
  • Weight: 3.4 kg (7.5 lbs)

Mounting and Deployment:

  • Mounting Type: Includes hardware for pole or wall mounting.
  • Weatherproofing: IP65-rated enclosure (resistant to dust and water, ensuring long-term outdoor performance in harsh conditions).

Certifications:

  • Safety and Regulatory Certifications:
    • CE
    • FCC
    • IC (Industry Canada)
  • Complies with RoHS (Restriction of Hazardous Substances) standards for environmental safety.

Performance Features:

  • Enhanced Coverage and Range:
    • With a 16 dBi gain and wide beamwidth, the antenna can cover large areas, offering superior range and coverage in rural, suburban, and urban deployments.
  • Optimized for Scalability:
    • This antenna supports high-density deployments, where multiple users connect simultaneously without degradation in service quality, leveraging the 4×4 MU-MIMO technology.
  • Beamforming Technology:
    • Designed to improve signal reception and transmission by directing the signal to specific client devices, thus increasing efficiency and range while reducing interference.
  • Reliability:
    • Its weatherproof IP65 rating makes the antenna highly resistant to environmental challenges, such as rain, wind, and dust, making it suitable for all outdoor installations.
